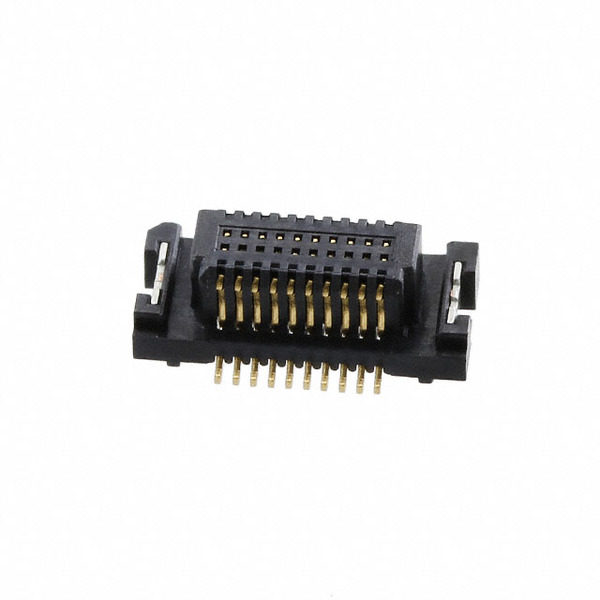

1747022-9
TE Connectivity / AMP
Images are for reference only.
See Product Specifications for product details.
Buy 1747022-9 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1747022-9 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1747022-9 |
|---|---|
| Manufacturer | TE Connectivity / AMP |
| Description | .4mm .5mm .6mm .8mm Fine Pitch Surface Mount Stacking Bd-to-Bd Connectors |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.593 | $1.438 | $1.297 | $1.269 | ||
Specifications
Data sheet
| Series: | Fine Mate |
|---|---|
| RoHS Status: | Tape & Reel (TR) |
| Other Names: | A118063TR |
| Number of Rows: | 2 |
| Number of Positions: | 20 |
| Number of Conductors: | 0.020" (0.50mm) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 24 Weeks |
| Manufacturer Part Number: | 1747022-9 |
| Length - Post (Mating): | 4mm, 4.5mm, 5.5mm, 6mm |
| Height Above Board: | 0.126" (3.20mm) |
| Features: | Solder Retention |
| Expanded Description: | 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Description: | CONN RECPT 20POS .5MM DUAL SMT |
| Contact Finish Thickness: | Gold |
| Connector Type: | Receptacle, Center Strip Contacts |
| Cable Diameter: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 1747022-9, use the request quote form to request 1747022-9 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1747022-9.The price and lead time for 1747022-9 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1747022-9.We look forward to working with you to establish long-term relations of cooperation
