172270
Amphenol Connex (Amphenol RF)

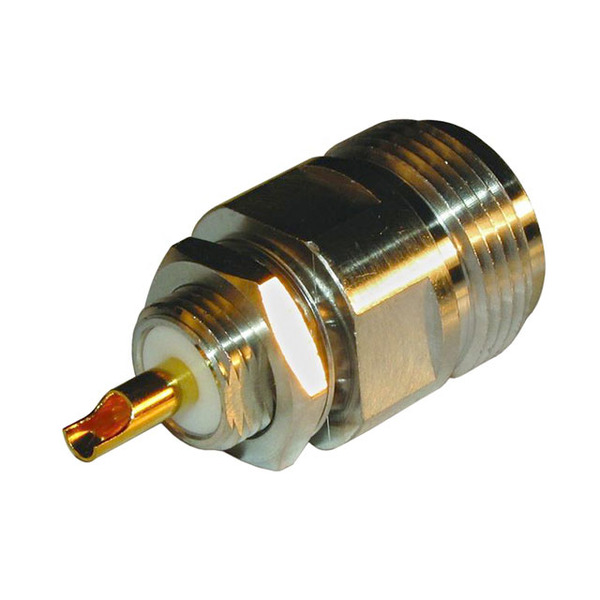

Images are for reference only.
See Product Specifications for product details.
Buy 172270 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 172270 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 172270 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN N JACK STR 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.21 | $12.92 | $12.597 | $11.628 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $10.982 | $10.013 | $9.367 | $8.592 | ||
Specifications
Data sheet
| Voltage Rating: | 1500V |
|---|---|
| Shield Termination: | Solder |
| Series: | - |
| Packaging: | Bulk |
| Other Names: | 172270-ND ARF3001 |
| Operating Temperature: | -65°C ~ 165°C |
| Number of Ports: | 1 |
| Mounting Type: | Panel Mount |
| Mounting Feature: | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 500 |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | 0.15dB |
| Ingress Protection: | - |
| Includes: | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance: | 50 Ohm |
| Housing Color: | Silver |
| Frequency - Max: | 11GHz |
| Features: | - |
| Fastening Type: | Threaded |
| Dielectric Material: | Polytetrafluoroethylene (PTFE) |
| Detailed Description: | N Type Connector Jack, Female Socket 50 Ohm Panel Mount Solder Cup |
| Contact Termination: | Solder Cup |
| Connector Type: | Jack, Female Socket |
| Connector Style: | N Type |
| Center Contact Plating: | Gold |
| Center Contact Material: | Phosphor Bronze |
| Cable Group: | - |
| Body Material: | Brass |
| Body Finish: | White Bronze |
| Email: | info@cjjhk.com |
Introduce
We can supply 172270, use the request quote form to request 172270 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 172270.The price and lead time for 172270 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 172270.We look forward to working with you to establish long-term relations of cooperation
