15GN03MA-TL-E
onsemi

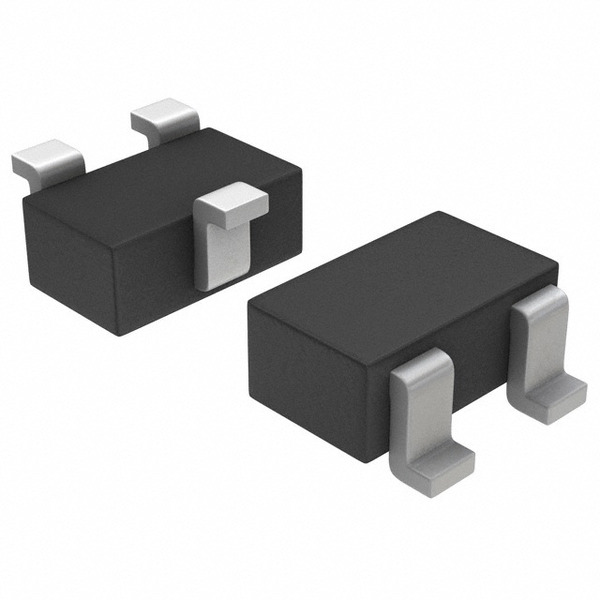

Images are for reference only.
See Product Specifications for product details.
Buy 15GN03MA-TL-E with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 15GN03MA-TL-E with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 15GN03MA-TL-E |
|---|---|
| Manufacturer | onsemi |
| Description | RF Transistor, NPN Single, 10 V, 70 mA, fT = 1.5 GHz |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.136 | $0.123 | $0.111 | $0.108 | ||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 10V |
|---|---|
| Transistor Type: | NPN |
| Supplier Device Package: | 3-MCP |
| Series: | - |
| Power - Max: | 400mW |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | SC-70, SOT-323 |
| Other Names: | 15GN03MA-TL-E-ND 15GN03MA-TL-EOSTR |
| Operating Temperature: | 150°C (TJ) |
| Noise Figure (dB Typ @ f): | 1.6dB @ 0.4GHz |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Gain: | 13dB @ 0.4GHz |
| Frequency - Transition: | 1.5GHz |
| Detailed Description: | RF Transistor NPN 10V 70mA 1.5GHz 400mW Surface Mount 3-MCP |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 10mA, 5V |
| Current - Collector (Ic) (Max): | 70mA |
| Email: | info@cjjhk.com |
Introduce
We can supply 15GN03MA-TL-E, use the request quote form to request 15GN03MA-TL-E pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 15GN03MA-TL-E.The price and lead time for 15GN03MA-TL-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 15GN03MA-TL-E.We look forward to working with you to establish long-term relations of cooperation
