159210-6012
3M

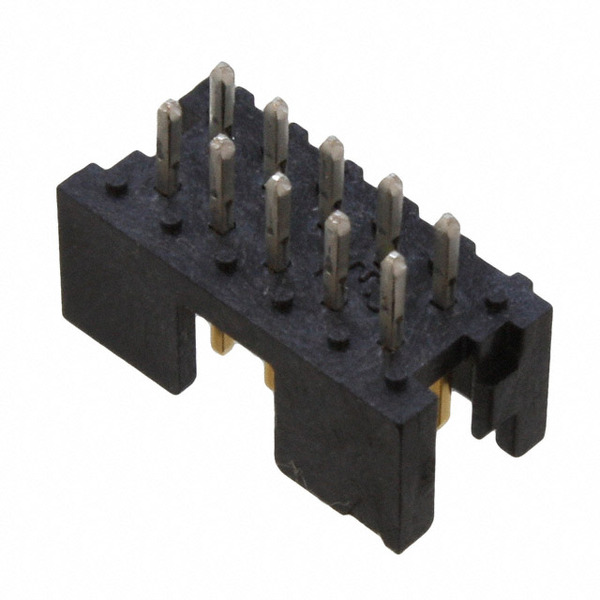

Images are for reference only.
See Product Specifications for product details.
Buy 159210-6012 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 159210-6012 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 159210-6012 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 2MM 10POS VERT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 432 pcs | 864 pcs | |
|---|---|---|---|---|---|
| $1.81 | $1.646 | $1.277 | $1.142 | ||
| 1296 pcs | 5184 pcs | 10368 pcs | |||
| $1.008 | $0.894 | $0.874 | |||
Specifications
Data sheet
| Voltage Rating: | 150V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | 159 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0-0-51115-58021-5 0-00-51115-58021-5 1592106012 7000057436 80-0012-5445-9 80001254459 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height: | 0.210" (5.33mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 10 position 0.079" (2.00mm) |
| Current Rating: | 1.25A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.112" (2.84mm) |
| Contact Length - Mating: | 0.142" (3.61mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
