158214-0120
3M

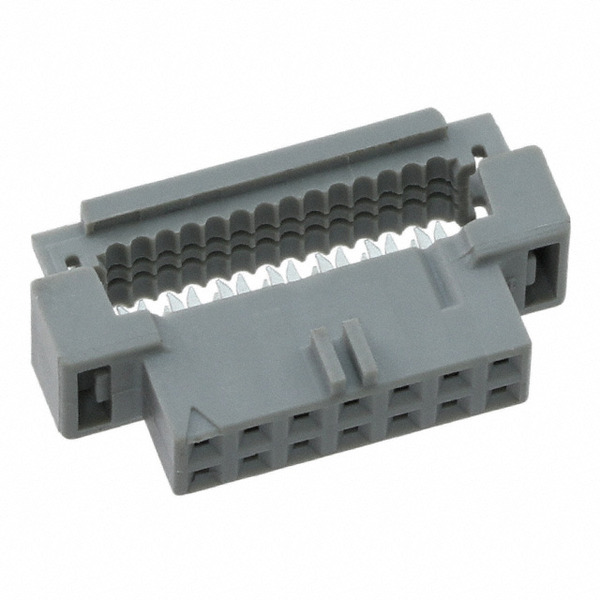

Images are for reference only.
See Product Specifications for product details.
Buy 158214-0120 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 158214-0120 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 158214-0120 |
|---|---|
| Manufacturer | 3M |
| Description | 2MM RIBBON CABLE SOCKET 14 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.80 | $2.688 | $2.464 | $2.352 | $2.24 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.96 | $1.904 | $1.624 | $1.512 | ||
Specifications
Data sheet
| Wire Type: | Ribbon Cable |
|---|---|
| Wire Gauge: | 28 AWG |
| Series: | 158 |
| Row Spacing: | 0.079" (2.00mm) |
| Pitch: | 0.079" (2.00mm) |
| Packaging: | Bulk |
| Other Names: | 00051111968475 05111196847 158214-0120-ND 3M156021 7010347870 80001251661 |
| Number of Rows: | 2 |
| Number of Positions: | 14 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Feed Through |
| Fastening Type: | - |
| Detailed Description: | 14 Position Rectangular Socket Connector IDC Gold 28 AWG |
| Contact Type: | Female Socket |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Contact Finish: | Gold |
| Connector Type: | Socket |
| Color: | Gray |
| Cable Termination: | IDC |
| Email: | info@cjjhk.com |
Introduce
We can supply 158214-0120, use the request quote form to request 158214-0120 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 158214-0120.The price and lead time for 158214-0120 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 158214-0120.We look forward to working with you to establish long-term relations of cooperation
