155226-5302-RB
3M

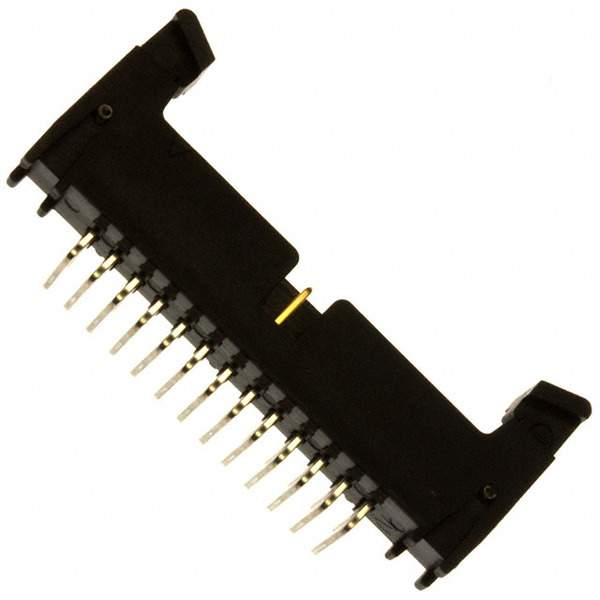

Images are for reference only.
See Product Specifications for product details.
Buy 155226-5302-RB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 155226-5302-RB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 155226-5302-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 2MM 26POS R/A .112" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $8.28 | $7.92 | $6.66 | $5.58 | $4.932 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | 1552 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0 00 51111 17038 0 1552265302RB 3M5095 5111117038 51111170380 7010395132 80-0011-2489-2 80001124892 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 26 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height: | 0.247" (6.28mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Latch Lock/Eject Hooks |
| Detailed Description: | Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm) |
| Current Rating: | 1.25A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.112" (2.84mm) |
| Contact Length - Mating: | 0.150" (3.81mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 155226-5302-RB, use the request quote form to request 155226-5302-RB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 155226-5302-RB.The price and lead time for 155226-5302-RB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 155226-5302-RB.We look forward to working with you to establish long-term relations of cooperation
