1514-1
Keystone Electronics Corp.

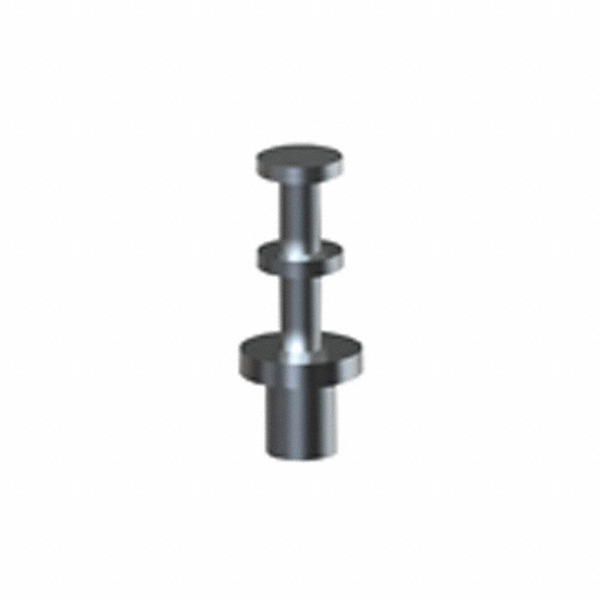

Images are for reference only.
See Product Specifications for product details.
Buy 1514-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1514-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1514-1 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | TERM TURRET SINGLE L=7.14MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $0.207 | |||||
Specifications
Data sheet
| Termination: | Staking Flare |
|---|---|
| Terminal Type: | Single End |
| Staking Side OD: | 0.090" (2.29mm) |
| Staking Side ID: | - |
| Series: | - |
| Other Names: | 1514-1K 1514-1K-ND 36-1514-1 |
| Number of Turrets: | Double |
| Mounting Type: | Through Hole |
| Mounting Hole Diameter: | 0.094" (2.39mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | - |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length - Overall: | 0.356" (9.04mm) |
| Length - Below Flange: | 0.075" (1.91mm) |
| Length - Above Board: | 0.281" (7.14mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Color: | - |
| Insulation: | Non-Insulated |
| Flange Diameter: | 0.156" (3.96mm) |
| Diameter - Turret Head: | 0.109" (2.77mm) |
| Detailed Description: | Terminal Turret Connector Single End 0.281" (7.14mm) Tin |
| Contact Material: | Brass |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin |
| Board Thickness: | 0.032" (0.81mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 1514-1, use the request quote form to request 1514-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1514-1.The price and lead time for 1514-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1514-1.We look forward to working with you to establish long-term relations of cooperation
