15-002243
Conec

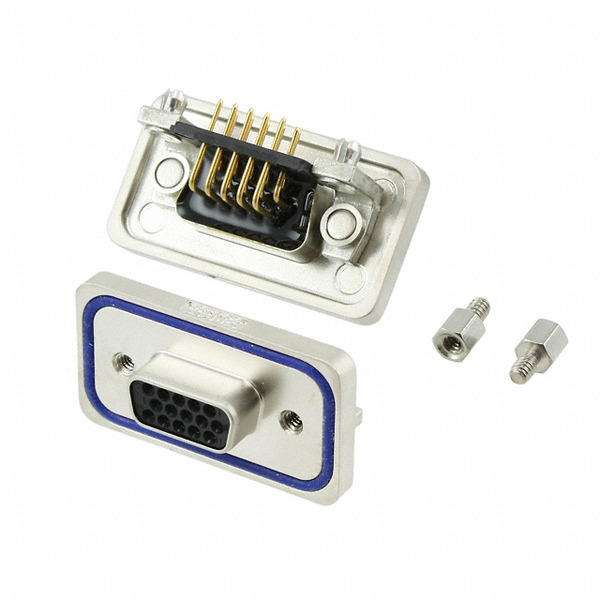

Images are for reference only.
See Product Specifications for product details.
Buy 15-002243 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 15-002243 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 15-002243 |
|---|---|
| Manufacturer | Conec |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $29.16 | $26.319 | $25.216 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $23.64 | $22.852 | $21.591 | |||
Specifications
Data sheet
| Wire Gauge: | - |
|---|---|
| Voltage Rating: | 60V |
| Termination: | Solder |
| Shell Size, Connector Layout: | 1 (DE, E) High Density |
| Shell Material, Finish: | Zinc Die Cast, Nickel Plated |
| Series: | - |
| Packaging: | Bulk |
| Other Names: | 15002243 626-1458 |
| Operating Temperature: | -25°C ~ 105°C |
| Number of Rows: | 3 |
| Number of Positions: | 15 |
| Mounting Type: | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Housing Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature: | Mating Side, Female Screwlock (4-40) |
| Features: | Board Lock, Mounting Brackets |
| Detailed Description: | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating: | 3A |
| Contact Type: | Signal |
| Contact Material: | Copper Alloy |
| Contact Form: | - |
| Contact Finish Thickness: | 8.00µin (0.203µm) |
| Contact Finish: | Gold |
| Connector Type: | Receptacle, Female Sockets |
| Connector Style: | D-Sub, High Density |
| Color: | Black |
| Backset Spacing: | 0.220" (5.60mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 15-002243, use the request quote form to request 15-002243 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 15-002243.The price and lead time for 15-002243 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 15-002243.We look forward to working with you to establish long-term relations of cooperation
