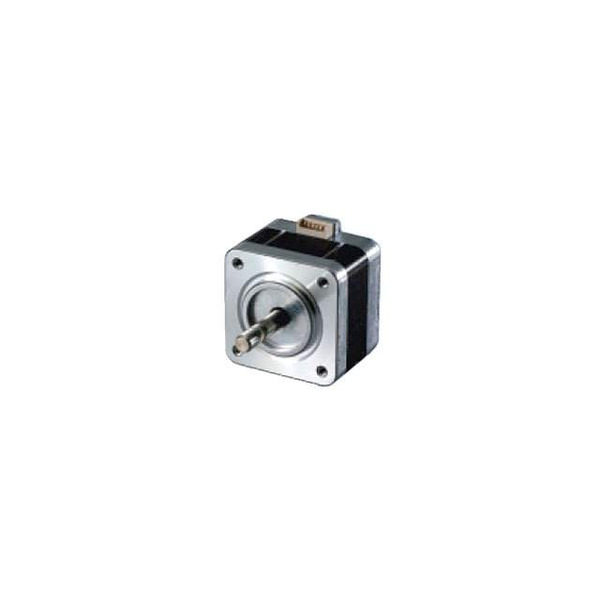

14PY-Z264U
NMB Technologies Corp.
Images are for reference only.
See Product Specifications for product details.
Buy 14PY-Z264U with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 14PY-Z264U with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 14PY-Z264U |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEP MOTOR HYBRID UNIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $39.592 | |||||
Specifications
Data sheet
| Weight: | 0.231 lb (104.78g) |
|---|---|
| Voltage - Rated: | 24VDC |
| Type: | Hybrid |
| Torque - Holding (oz-in / mNm): | 3.12 / 22 |
| Termination Style: | Connector |
| Steps per Revolution: | 400 |
| Step Angle: | 0.9° |
| Size / Dimension: | Square - 1.378" x 1.378" (35.00mm x 35.00mm) |
| Series: | 14PY |
| Rotor Inertia: | 5gcm² |
| Operating Temperature: | - |
| NEMA Frame Size: | 14 |
| Mounting Hole Spacing: | 1.023" (26.00mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Length - Shaft and Bearing: | 0.787" (20.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Round Shaft |
| Diameter - Shaft: | 0.197" (5.00mm) |
| Detailed Description: | Unipolar Stepper Motor Frame Size 14 400 Step 0.4A 24VDC |
| Current Rating: | 400mA |
| Coil Type: | Unipolar |
| Coil Resistance: | 7 Ohms |
| Approvals: | - |
| Accuracy: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 14PY-Z264U, use the request quote form to request 14PY-Z264U pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 14PY-Z264U.The price and lead time for 14PY-Z264U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 14PY-Z264U.We look forward to working with you to establish long-term relations of cooperation
