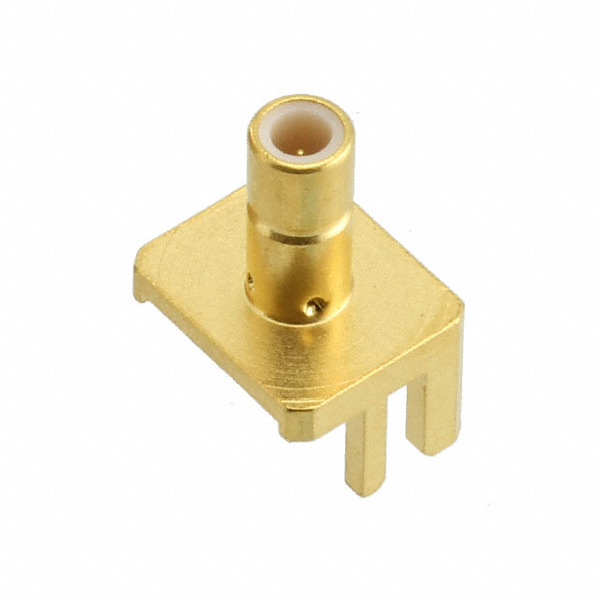

131-3701-811
Bel
Images are for reference only.
See Product Specifications for product details.
Buy 131-3701-811 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 131-3701-811 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 131-3701-811 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMB JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $16.32 | $14.832 | $14.461 | $13.349 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $12.607 | $11.495 | $10.753 | $9.863 | ||
Specifications
Data sheet
| Voltage Rating: | 335V |
|---|---|
| Shield Termination: | Solder |
| Series: | - |
| Packaging: | Bulk |
| Other Names: | 1313701811 J10199 |
| Operating Temperature: | -65°C ~ 165°C |
| Number of Ports: | 1 |
| Mounting Type: | Board Edge, End Launch |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 500 |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | - |
| Ingress Protection: | - |
| Includes: | - |
| Impedance: | 50 Ohm |
| Housing Color: | Gold |
| Frequency - Max: | 4GHz |
| Features: | - |
| Fastening Type: | Snap-On |
| Dielectric Material: | Polytetrafluoroethylene (PTFE) |
| Detailed Description: | SMB Connector Jack, Male Pin 50 Ohm Board Edge, End Launch Solder |
| Contact Termination: | Solder |
| Connector Type: | Jack, Male Pin |
| Connector Style: | SMB |
| Center Contact Plating: | Gold |
| Center Contact Material: | Brass |
| Cable Group: | - |
| Body Material: | Brass |
| Body Finish: | Gold |
| Email: | info@cjjhk.com |
Introduce
We can supply 131-3701-811, use the request quote form to request 131-3701-811 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 131-3701-811.The price and lead time for 131-3701-811 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 131-3701-811.We look forward to working with you to establish long-term relations of cooperation
