1053092205
Affinity Medical Technologies - a Molex company

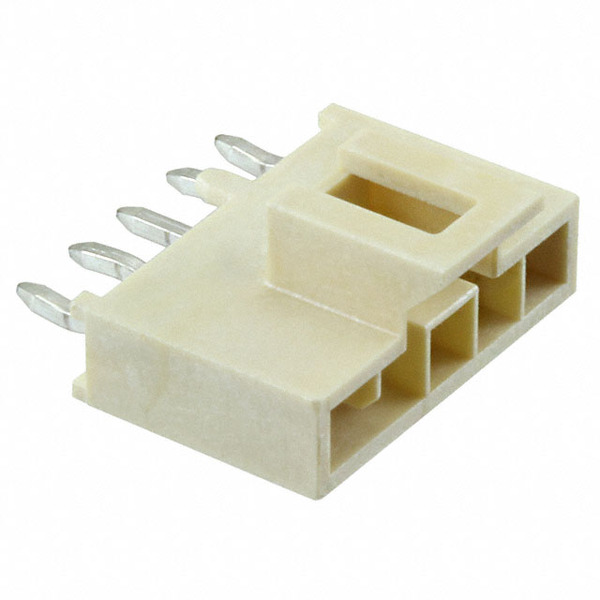

Images are for reference only.
See Product Specifications for product details.
Buy 1053092205 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1053092205 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1053092205 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | NANO-FIT HDR VT SGL KNK 5CKT 15A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 120 pcs | 600 pcs | |
|---|---|---|---|---|---|
| $1.50 | $1.358 | $1.164 | $0.97 | ||
| 1080 pcs | 5040 pcs | 10080 pcs | |||
| $0.832 | $0.737 | $0.721 | |||
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Kinked Pin, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Nano-Fit 105309 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.098" (2.50mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 105309-2205 WM15046 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 5 |
| Mounting Type: | Through Hole |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | 21.30mm |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.356" (9.05mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Board Guide |
| Fastening Type: | Latch Lock |
| Detailed Description: | Connector Header Through Hole 5 position 0.098" (2.50mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.126" (3.20mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 59.0µin (1.50µm) |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 1053092205, use the request quote form to request 1053092205 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1053092205.The price and lead time for 1053092205 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1053092205.We look forward to working with you to establish long-term relations of cooperation
