104196-5
Agastat Relays / TE Connectivity

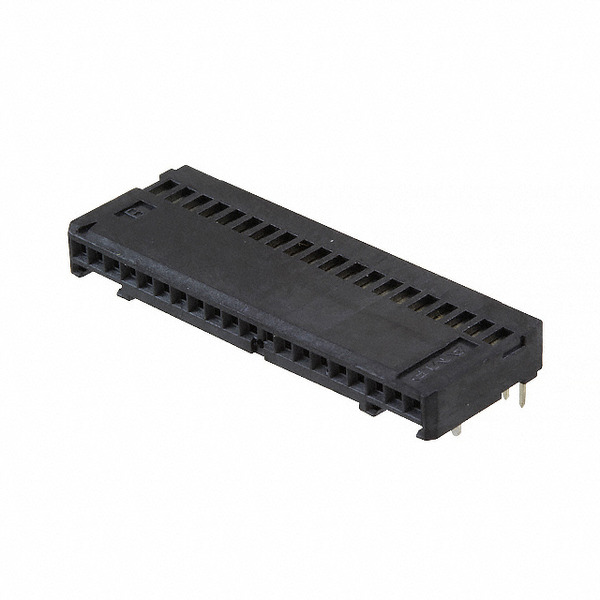

Images are for reference only.
See Product Specifications for product details.
Buy 104196-5 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 104196-5 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 104196-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 20POS R/A SOLDER T/H |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.53 | $5.304 | $4.42 | $3.757 | $3.205 | |
Specifications
Data sheet
| Voltage Rating: | 30VAC |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | AMPMODU System 50 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tube |
| Other Names: | 104196-5-ND A114692 |
| Operating Temperature: | -65°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 20 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Thermoplastic, Glass Filled |
| Insulation Height: | 0.117" (2.97mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Guide |
| Fastening Type: | Push-Pull |
| Detailed Description: | 20 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold |
| Current Rating: | 1A |
| Contact Type: | Female Socket |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.100" (2.54mm) |
| Contact Finish Thickness - Post: | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 104196-5, use the request quote form to request 104196-5 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 104196-5.The price and lead time for 104196-5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 104196-5.We look forward to working with you to establish long-term relations of cooperation
