104074-3
Agastat Relays / TE Connectivity

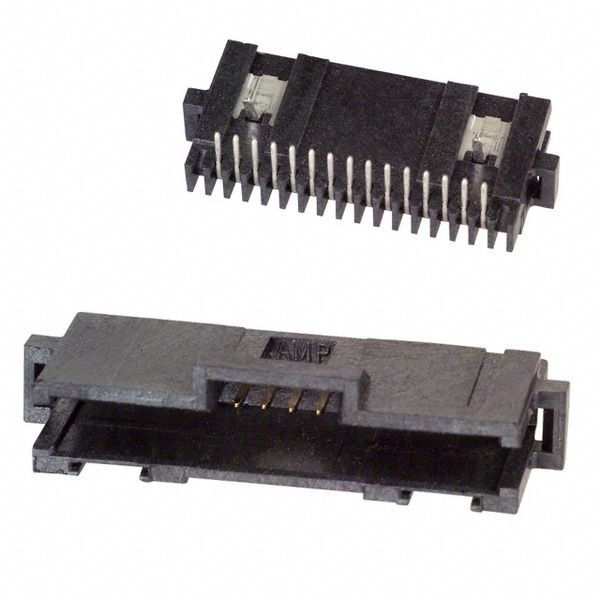

Images are for reference only.
See Product Specifications for product details.
Buy 104074-3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 104074-3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 104074-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER RT/A .050 15POS 30AU |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.70 | $3.552 | $2.96 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $2.516 | $2.146 | $1.924 | |||
Specifications
Data sheet
| Voltage Rating: | 30VAC |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 2 Wall |
| Series: | AMPMODU System 50 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | 104074-3-ND A0109 |
| Operating Temperature: | -65°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 15 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Thermoplastic |
| Insulation Height: | 0.190" (4.83mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Guide |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Through Hole, Right Angle 15 position 0.050" (1.27mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.100" (2.54mm) |
| Contact Length - Mating: | 0.125" (3.18mm) |
| Contact Finish Thickness - Post: | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 104074-3, use the request quote form to request 104074-3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 104074-3.The price and lead time for 104074-3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 104074-3.We look forward to working with you to establish long-term relations of cooperation
