1003P3T1B1M1QEH
E-Switch

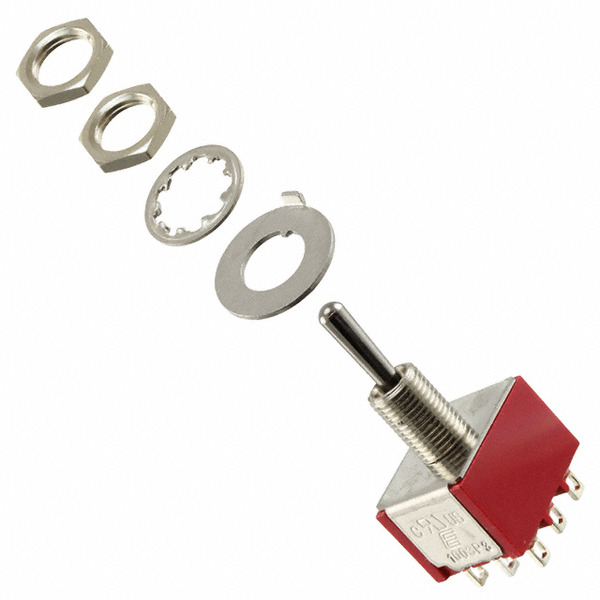

Images are for reference only.
See Product Specifications for product details.
Buy 1003P3T1B1M1QEH with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1003P3T1B1M1QEH with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1003P3T1B1M1QEH |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TOGGLE 3PDT 5A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.92 | $5.626 | $5.478 | $5.33 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $5.182 | $4.886 | $4.145 | $3.923 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 120V |
| Termination Style: | Solder Lug |
| Switch Function: | On-Off-On |
| Series: | 100 |
| Panel Cutout Dimensions: | Circular - 6.35mm Dia |
| Packaging: | Bulk |
| Other Names: | EG2426 T135009 |
| Operating Temperature: | -30°C ~ 85°C |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 40,000 Cycles |
| Detailed Description: | Toggle Switch 3PDT Panel Mount |
| Current Rating: | 5A (AC/DC) |
| Circuit: | 3PDT |
| Bushing Thread: | 1/4-40 |
| Actuator Type: | Standard Round |
| Actuator Material: | Brass, Chrome Plated |
| Actuator Length: | 10.41mm |
| Email: | info@cjjhk.com |
Introduce
We can supply 1003P3T1B1M1QEH, use the request quote form to request 1003P3T1B1M1QEH pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1003P3T1B1M1QEH.The price and lead time for 1003P3T1B1M1QEH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1003P3T1B1M1QEH.We look forward to working with you to establish long-term relations of cooperation
