1-647676-0
Agastat Relays / TE Connectivity

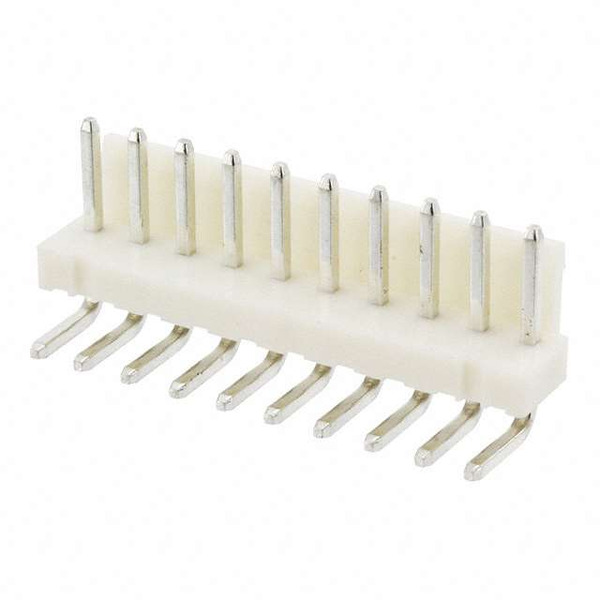

Images are for reference only.
See Product Specifications for product details.
Buy 1-647676-0 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1-647676-0 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1-647676-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 3.96 EP HDR ASSY 10P R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.73 | $0.688 | $0.527 | $0.459 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.378 | $0.332 | $0.31 | |||
Specifications
Data sheet
| Voltage Rating: | 250VAC |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 1 Wall |
| Series: | Economy Power |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.156" (3.96mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | A116447 |
| Operating Temperature: | -25°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Insulation Height: | 0.339" (8.61mm) |
| Insulation Color: | White |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Friction Lock |
| Detailed Description: | Connector Header Through Hole, Right Angle 10 position 0.156" (3.96mm) |
| Current Rating: | 7.5A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.142" (3.60mm) |
| Contact Length - Mating: | 0.338" (8.59mm) |
| Contact Finish Thickness - Post: | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating: | 80.0µin (2.03µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Industrial, Lighting |
| Email: | info@cjjhk.com |
Introduce
We can supply 1-647676-0, use the request quote form to request 1-647676-0 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1-647676-0.The price and lead time for 1-647676-0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1-647676-0.We look forward to working with you to establish long-term relations of cooperation
