1-532955-6
Agastat Relays / TE Connectivity

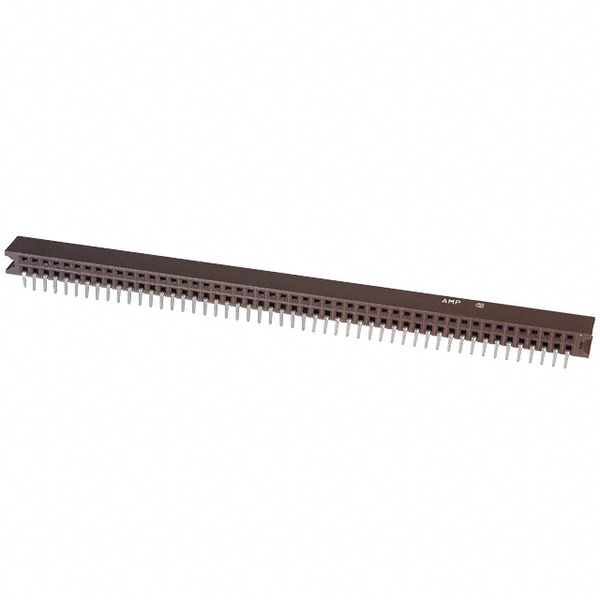

Images are for reference only.
See Product Specifications for product details.
Buy 1-532955-6 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1-532955-6 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1-532955-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECPT 100POS .100 RT/A DUAL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 270 pcs | ||||
|---|---|---|---|---|---|
| $14.878 | |||||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | AMPMODU Mod II |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Other Names: | 1-532955-6-ND A26370 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 100 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height: | 0.238" (6.05mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Guide Pin Ears |
| Fastening Type: | Push-Pull |
| Detailed Description: | 100 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating: | - |
| Contact Type: | Female Socket |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.115" (2.92mm) |
| Contact Finish Thickness - Post: | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 1-532955-6, use the request quote form to request 1-532955-6 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1-532955-6.The price and lead time for 1-532955-6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1-532955-6.We look forward to working with you to establish long-term relations of cooperation
