1-5164713-0
Agastat Relays / TE Connectivity

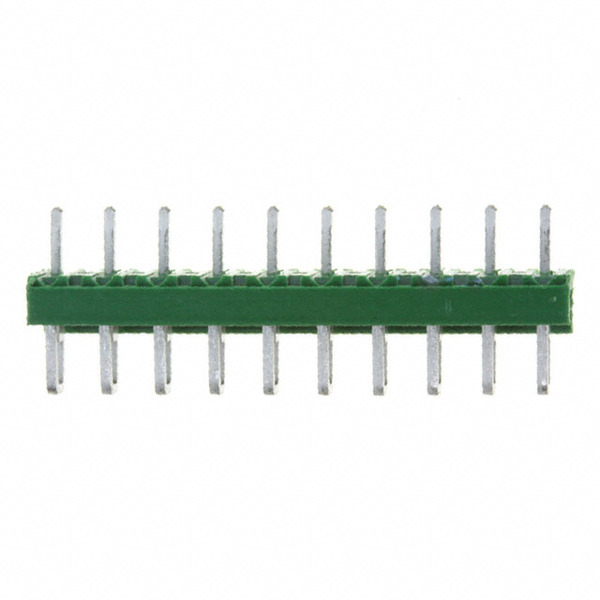

Images are for reference only.
See Product Specifications for product details.
Buy 1-5164713-0 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5164713-0 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1-5164713-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 10POS VERT 2.5MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.82 | $1.647 | $1.412 | $1.177 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.009 | $0.894 | $0.874 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Unshrouded |
| Series: | Mini-Match |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.098" (2.50mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.358" (9.09mm) |
| Other Names: | A36395 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height: | 0.118" (3.00mm) |
| Insulation Color: | Green |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | - |
| Detailed Description: | Connector Header Through Hole 10 position 0.098" (2.50mm) |
| Current Rating: | - |
| Contact Type: | Tab |
| Contact Shape: | Rectangular |
| Contact Material: | Brass |
| Contact Length - Post: | 0.126" (3.20mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 1-5164713-0, use the request quote form to request 1-5164713-0 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1-5164713-0.The price and lead time for 1-5164713-0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1-5164713-0.We look forward to working with you to establish long-term relations of cooperation
