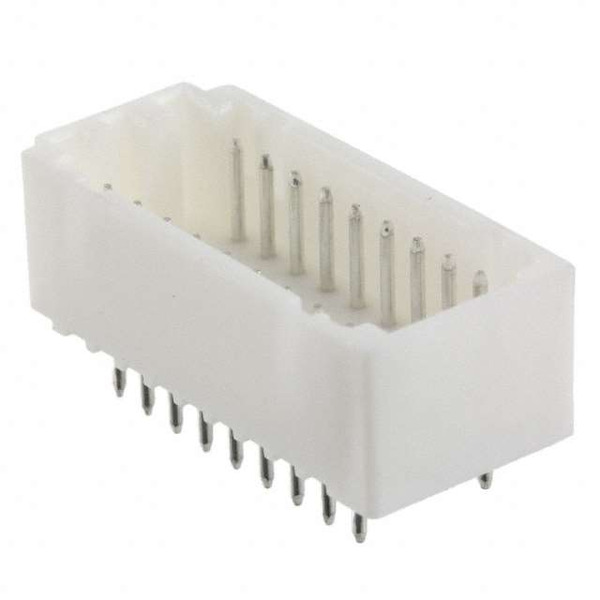

1-292252-8
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy 1-292252-8 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1-292252-8 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1-292252-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 18POS VERT TIN 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2520 pcs | ||||
|---|---|---|---|---|---|
| $0.547 | |||||
Specifications
Data sheet
| Voltage Rating: | 125VAC |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | CT |
| Row Spacing - Mating: | 0.256" (6.50mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | 0.386" (9.80mm) |
| Other Names: | 1-292252-8-ND A114830 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 18 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Insulation Height: | 0.295" (7.50mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Detent Lock |
| Detailed Description: | Connector Header Through Hole 18 position 0.079" (2.00mm) |
| Current Rating: | Varies by Wire Gauge |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | Brass |
| Contact Length - Post: | 0.126" (3.20mm) |
| Contact Length - Mating: | 0.185" (4.70mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply 1-292252-8, use the request quote form to request 1-292252-8 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1-292252-8.The price and lead time for 1-292252-8 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1-292252-8.We look forward to working with you to establish long-term relations of cooperation
