1-178138-3
Agastat Relays / TE Connectivity

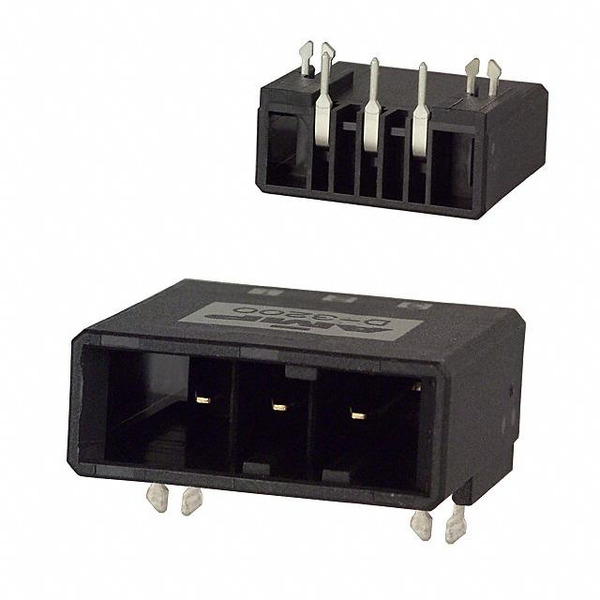

Images are for reference only.
See Product Specifications for product details.
Buy 1-178138-3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1-178138-3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1-178138-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR 3POS R/A KEY-X 30GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.43 | $2.203 | $1.888 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $1.573 | $1.349 | $1.196 | |||
Specifications
Data sheet
| Voltage Rating: | 600V |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Dynamic D-3200 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 11781383 A29386 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 3 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 24 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Thermoplastic, Polyester, Glass Filled |
| Insulation Height: | 0.368" (9.35mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Lock |
| Fastening Type: | Detent Lock |
| Detailed Description: | Connector Header Through Hole, Right Angle 3 position 0.200" (5.08mm) |
| Current Rating: | - |
| Contact Type: | Tab |
| Contact Shape: | Rectangular |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.150" (3.81mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | General Purpose, Industrial |
| Email: | info@cjjhk.com |
Introduce
We can supply 1-178138-3, use the request quote form to request 1-178138-3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1-178138-3.The price and lead time for 1-178138-3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1-178138-3.We look forward to working with you to establish long-term relations of cooperation
