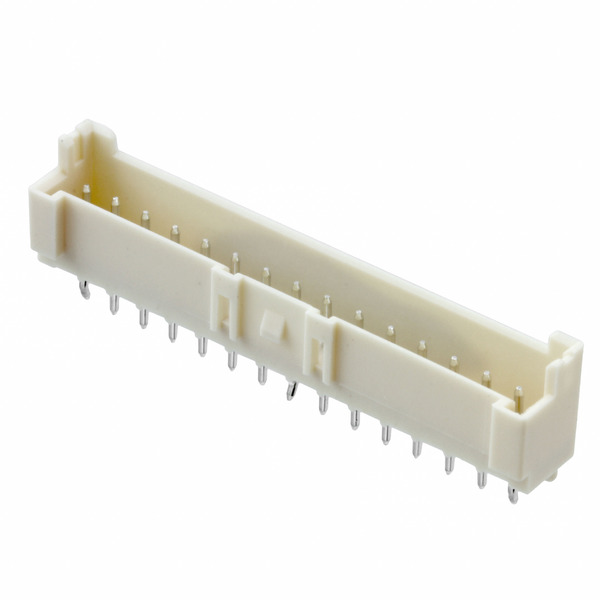

1-1744418-5
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy 1-1744418-5 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1744418-5 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1-1744418-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 15 POS EP 2.5 HDR, GLOW WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5100 pcs | ||||
|---|---|---|---|---|---|
| $0.475 | |||||
Specifications
Data sheet
| Voltage Rating: | 250VAC |
|---|---|
| Termination: | Kinked Pin, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Economy Power 2.5 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.098" (2.50mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | A117146 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 15 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.346" (8.80mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Board Guide, Glow Wire Compliant |
| Fastening Type: | Friction Lock |
| Detailed Description: | Connector Header Through Hole 15 position 0.098" (2.50mm) |
| Current Rating: | 4.2A |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.134" (3.40mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating: | 80.0µin (2.03µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Industrial, Lighting |
| Email: | info@cjjhk.com |
Introduce
We can supply 1-1744418-5, use the request quote form to request 1-1744418-5 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1-1744418-5.The price and lead time for 1-1744418-5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1-1744418-5.We look forward to working with you to establish long-term relations of cooperation
