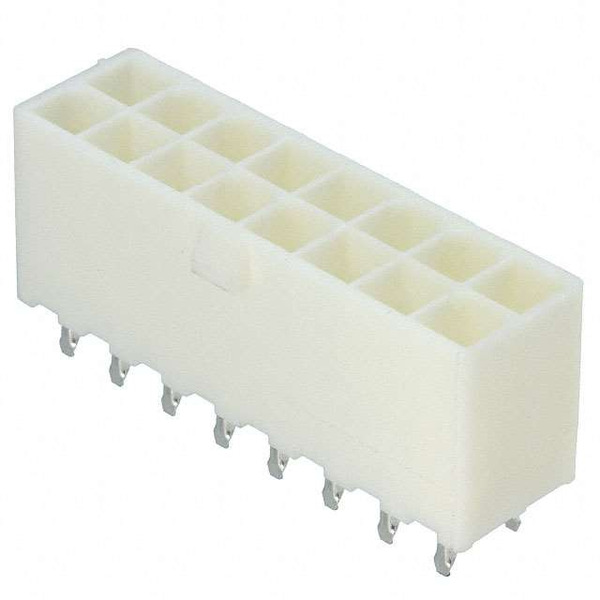

1-1586038-6
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy 1-1586038-6 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1586038-6 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1-1586038-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 16POS VERT DUAL TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 165 pcs | 660 pcs | |
|---|---|---|---|---|---|
| $1.23 | $1.078 | $0.93 | $0.761 | ||
| 1155 pcs | 5115 pcs | 10065 pcs | |||
| $0.676 | $0.592 | $0.562 | |||
Specifications
Data sheet
| Voltage Rating: | 600VAC |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | VAL-U-LOK |
| Row Spacing - Mating: | 0.165" (4.20mm) |
| Pitch - Mating: | 0.165" (4.20mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 1-1586038-6-ND A114795 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 16 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 28 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.504" (12.80mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole 16 position 0.165" (4.20mm) |
| Current Rating: | 9A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass Alloy |
| Contact Length - Post: | 0.138" (3.50mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating: | 80.0µin (2.03µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Industrial, Lighting |
| Email: | info@cjjhk.com |
Introduce
We can supply 1-1586038-6, use the request quote form to request 1-1586038-6 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1-1586038-6.The price and lead time for 1-1586038-6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1-1586038-6.We look forward to working with you to establish long-term relations of cooperation
