09DB-8M
JST

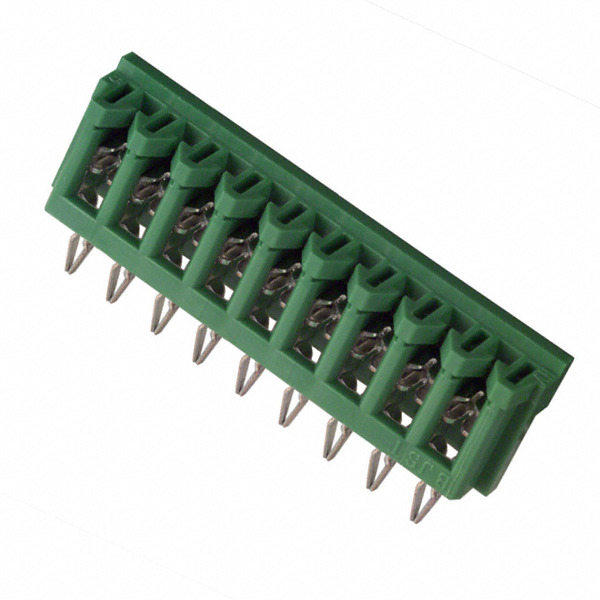

Images are for reference only.
See Product Specifications for product details.
Buy 09DB-8M with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 09DB-8M with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 09DB-8M |
|---|---|
| Manufacturer | JST |
| Description | CONN IDC DB 9POS 2.5MM GRN PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.458 | |||||
Specifications
Data sheet
| Wire Gauge: | 24-28 AWG, Stranded |
|---|---|
| Series: | DB |
| Row Spacing: | - |
| Packaging: | Bulk |
| Other Names: | 455-1077 |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 9 |
| Mounting Type: | Through Hole, Press-Fit |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 24 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Features: | Closed End |
| Detailed Description: | 9 Position Individual Wires Connector Green IDC 24-28 AWG, Stranded Through Hole, Press-Fit |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin-Lead |
| Connector Type: | Individual Wires |
| Color: | Green |
| Cable Termination: | IDC |
| Cable Pitch: | 0.098" (2.50mm) |
| Board-Side Pitch: | 0.098" (2.50mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 09DB-8M, use the request quote form to request 09DB-8M pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 09DB-8M.The price and lead time for 09DB-8M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 09DB-8M.We look forward to working with you to establish long-term relations of cooperation
