09693115172
HARTING

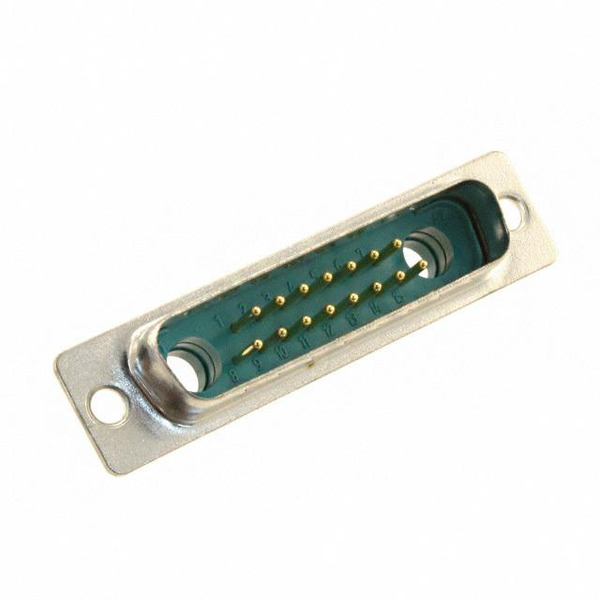

Images are for reference only.
See Product Specifications for product details.
Buy 09693115172 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 09693115172 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 09693115172 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB PLUG 17P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $11.45 | $10.956 | $9.96 | $9.462 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.213 | $8.217 | $7.719 | $6.823 | ||
Specifications
Data sheet
| Wire Gauge: | 20 AWG |
|---|---|
| Voltage Rating: | - |
| Termination: | Solder Cup |
| Shell Size, Connector Layout: | 3 (DB, B) - 17W2 |
| Shell Material, Finish: | Steel, Tin Plated |
| Series: | - |
| Packaging: | Bulk |
| Other Names: | 1195-2876 9693115172 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions: | 17 (15 + 2 Coax or Power) |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Housing Material: | Polyester Thermoplastic, Glass Filled |
| Flange Feature: | Housing/Shell (Unthreaded) |
| Features: | Grounding Indents |
| Detailed Description: | 17 (15 + 2 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating: | 5A |
| Contact Type: | Signal and Coax or Power (Not Included) |
| Contact Material: | - |
| Contact Form: | - |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Contact Finish: | Gold or Gold-Palladium |
| Connector Type: | Plug, Male Pins |
| Connector Style: | D-Sub, Combo |
| Color: | Green |
| Backset Spacing: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 09693115172, use the request quote form to request 09693115172 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 09693115172.The price and lead time for 09693115172 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 09693115172.We look forward to working with you to establish long-term relations of cooperation
