09643247222
HARTING

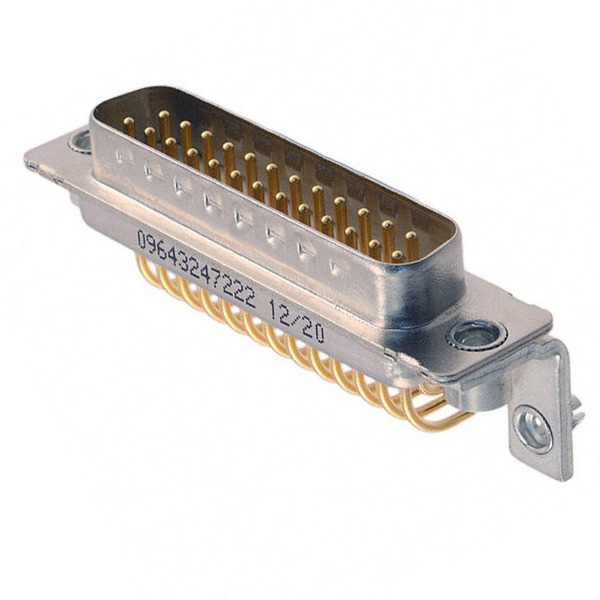

Images are for reference only.
See Product Specifications for product details.
Buy 09643247222 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 09643247222 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 09643247222 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB PLUG 25POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $30.82 | $27.822 | $26.656 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $24.99 | $24.157 | $22.824 | |||
Specifications
Data sheet
| Wire Gauge: | - |
|---|---|
| Voltage Rating: | 100V |
| Termination: | Solder |
| Shell Size, Connector Layout: | 3 (DB, B) |
| Shell Material, Finish: | Steel, Tin Plated |
| Series: | - |
| Packaging: | Bulk |
| Other Names: | 1195-2439 9643247222 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions: | 25 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Housing Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Flange Feature: | Board Side (4-40) |
| Features: | Board Lock, Filter, Grounding Indents, Mounting Brackets |
| Detailed Description: | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating: | 7.5A |
| Contact Type: | Signal |
| Contact Material: | Copper Alloy |
| Contact Form: | Machined |
| Contact Finish Thickness: | - |
| Contact Finish: | - |
| Connector Type: | Plug, Male Pins |
| Connector Style: | D-Sub |
| Color: | Natural |
| Backset Spacing: | 0.406" (10.30mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 09643247222, use the request quote form to request 09643247222 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 09643247222.The price and lead time for 09643247222 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 09643247222.We look forward to working with you to establish long-term relations of cooperation
