0874271642
Affinity Medical Technologies - a Molex company

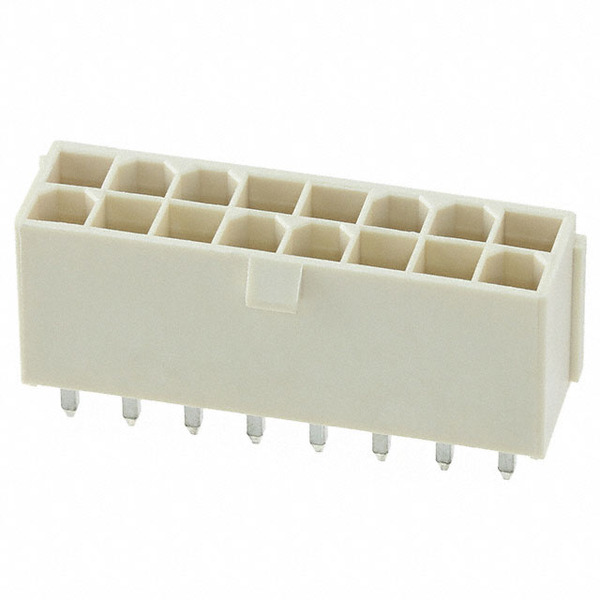

Images are for reference only.
See Product Specifications for product details.
Buy 0874271642 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0874271642 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0874271642 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINIFIT JR HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 250 pcs | ||
|---|---|---|---|---|---|
| $3.12 | $2.994 | $2.183 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $2.121 | $1.809 | $1.622 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Mini-Fit Jr 87427 |
| Row Spacing - Mating: | 0.165" (4.20mm) |
| Pitch - Mating: | 0.165" (4.20mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 0874-27-1642 087427-1642 0874271642-ND 87427-1642 874271642 WM14708 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 16 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA46), Nylon 4/6 |
| Insulation Height: | 0.504" (12.80mm) |
| Insulation Color: | Beige |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole 16 position 0.165" (4.20mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.130" (3.30mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Industrial, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0874271642, use the request quote form to request 0874271642 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0874271642.The price and lead time for 0874271642 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0874271642.We look forward to working with you to establish long-term relations of cooperation
