0751020104
Affinity Medical Technologies - a Molex company

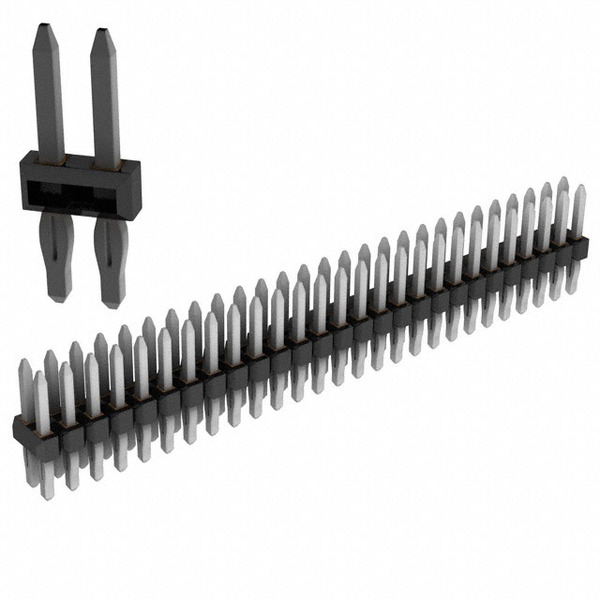

Images are for reference only.
See Product Specifications for product details.
Buy 0751020104 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0751020104 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0751020104 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HDR DUAL 54POS .100 SRT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $37.18 | $33.559 | $32.152 | $30.143 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $29.138 | $27.531 | $26.727 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Press-Fit, Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | C-Grid 75102 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.517" (13.13mm) |
| Other Names: | 075102-0104 075102-0104-E 0751020104-E 75102-0104 75102-0104-E 751020104 751020104-E WM50023-54 WM7454 WM7454-ND |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 54 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height: | 0.090" (2.29mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 54 position 0.100" (2.54mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.187" (4.75mm) |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 200.0µin (5.08µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header, Breakaway |
| Applications: | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0751020104, use the request quote form to request 0751020104 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0751020104.The price and lead time for 0751020104 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0751020104.We look forward to working with you to establish long-term relations of cooperation
