0705530044
Affinity Medical Technologies - a Molex company

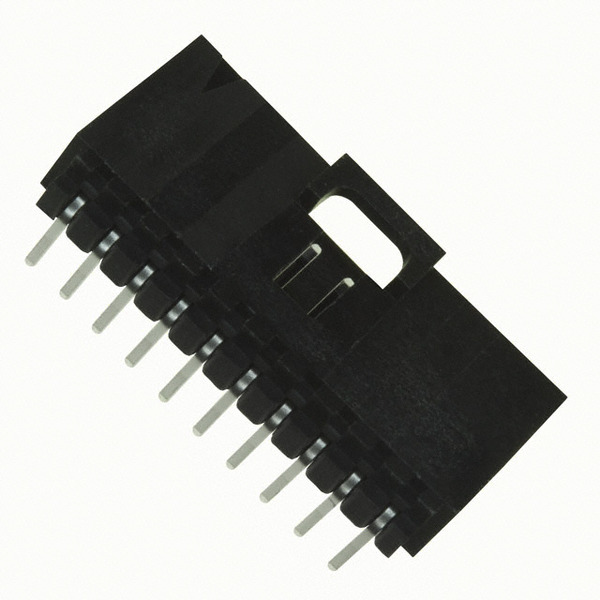

Images are for reference only.
See Product Specifications for product details.
Buy 0705530044 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0705530044 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0705530044 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HDR RT ANG 10POS .100 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.76 | $2.65 | $2.208 | |||
| 760 pcs | 1520 pcs | 5320 pcs | |||
| $1.712 | $1.546 | $1.435 | |||
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | SL 70553 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | 70553-0044 70553-0044-ND 70553-0044-TB19 705530044 WM4932 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyester, Glass Filled |
| Insulation Height: | 0.215" (5.45mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.130" (3.30mm) |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Finish Thickness - Post: | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating: | 150.0µin (3.81µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical |
| Email: | info@cjjhk.com |
Introduce
We can supply 0705530044, use the request quote form to request 0705530044 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0705530044.The price and lead time for 0705530044 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0705530044.We look forward to working with you to establish long-term relations of cooperation
