0543932781
Affinity Medical Technologies - a Molex company

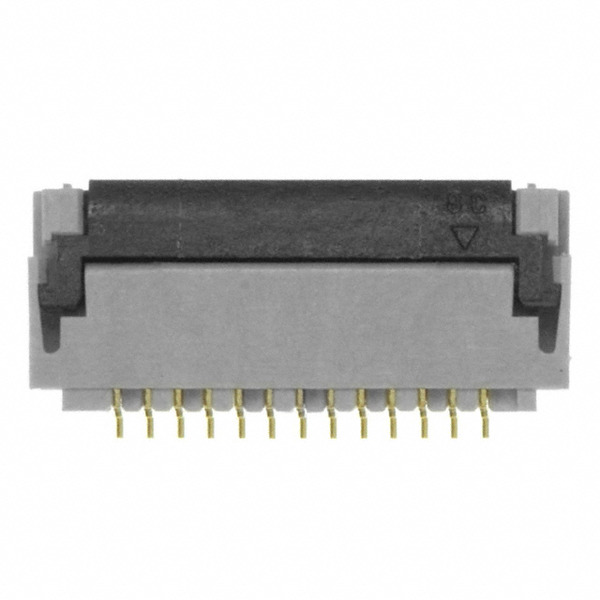

Images are for reference only.
See Product Specifications for product details.
Buy 0543932781 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0543932781 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0543932781 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 27POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Series: | Easy-On 54393 |
| Pitch: | 0.012" (0.30mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 054393-2781 054393-2781-C 0543932781-C 54393-2718 54393-2781 54393-2781-C 54393-2781-ND 54393-2781INACTIVE-ND 543932781 543932781-C WM2224TR |
| Operating Temperature: | -20°C ~ 85°C |
| Number of Positions: | 27 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 20 |
| Material Flammability Rating: | UL94 V-0 |
| Locking Feature: | Flip Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP) |
| Housing Color: | - |
| Height Above Board: | 0.077" (1.95mm) |
| Flat Flex Type: | FPC |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.20mm |
| Detailed Description: | 27 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating: | 0.2A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | 8.00µin (0.203µm) |
| Contact Finish: | Gold |
| Connector/Contact Type: | Contacts, Bottom |
| Cable End Type: | Tapered |
| Actuator Material: | Polyphenylene Sulfide (PPS) |
| Actuator Color: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 0543932781, use the request quote form to request 0543932781 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0543932781.The price and lead time for 0543932781 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0543932781.We look forward to working with you to establish long-term relations of cooperation
