0534260810
Affinity Medical Technologies - a Molex company

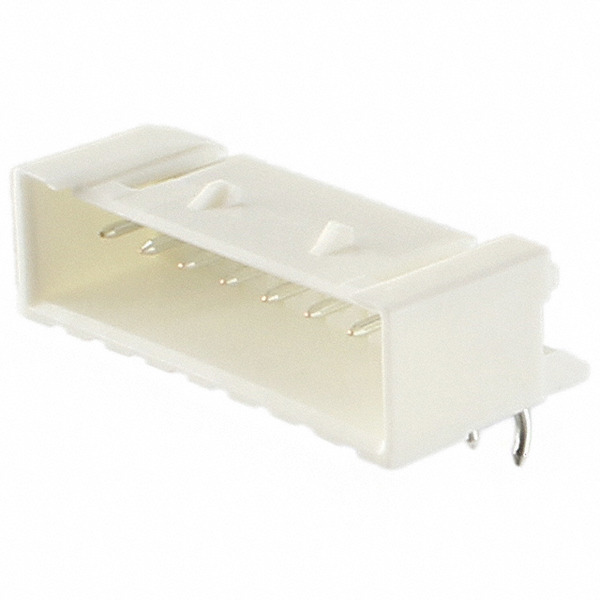

Images are for reference only.
See Product Specifications for product details.
Buy 0534260810 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0534260810 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0534260810 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.5 WTB WAFER ASSY RA W/KINK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.81 | $0.716 | $0.618 | $0.505 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.449 | $0.393 | $0.373 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Kinked Pin, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Mini-Lock 53426 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.098" (2.50mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 053426-0810 0534260810-ND 53426-0810 534260810 WM10109 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 8 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polybutylene Terephthalate (PBTP) |
| Insulation Height: | 0.264" (6.70mm) |
| Insulation Color: | White |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.134" (3.40mm) |
| Contact Length - Mating: | 0.157" (4.00mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Industrial |
| Email: | info@cjjhk.com |
Introduce
We can supply 0534260810, use the request quote form to request 0534260810 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0534260810.The price and lead time for 0534260810 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0534260810.We look forward to working with you to establish long-term relations of cooperation
