0530151210
Affinity Medical Technologies - a Molex company

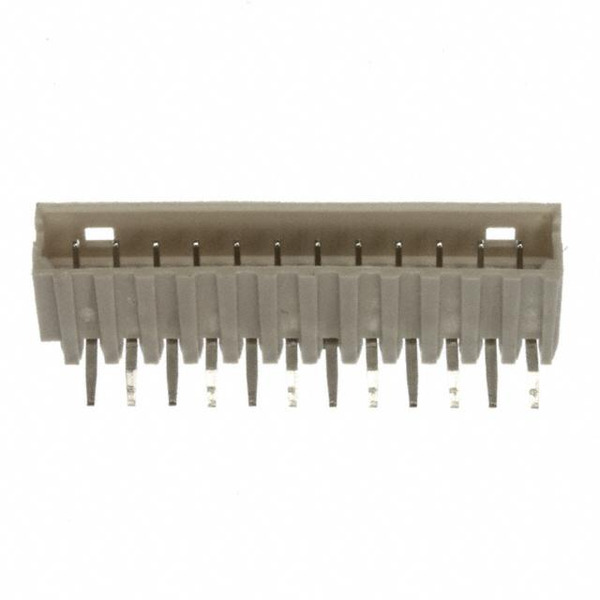

Images are for reference only.
See Product Specifications for product details.
Buy 0530151210 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0530151210 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0530151210 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2MM 12POS RT ANG TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.37 | $1.201 | $1.036 | $0.847 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Kinked Pin, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | MicroBlade 53015 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 53015-1210 530151210 WM18988 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 12 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height: | 0.183" (4.65mm) |
| Insulation Color: | White |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Detent Lock |
| Detailed Description: | Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm) |
| Current Rating: | - |
| Contact Type: | Male Blade |
| Contact Shape: | Rectangular |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.138" (3.50mm) |
| Contact Length - Mating: | 0.122" (3.10mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 35.4µin (0.90µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0530151210, use the request quote form to request 0530151210 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0530151210.The price and lead time for 0530151210 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0530151210.We look forward to working with you to establish long-term relations of cooperation
