0522071133
Affinity Medical Technologies - a Molex company

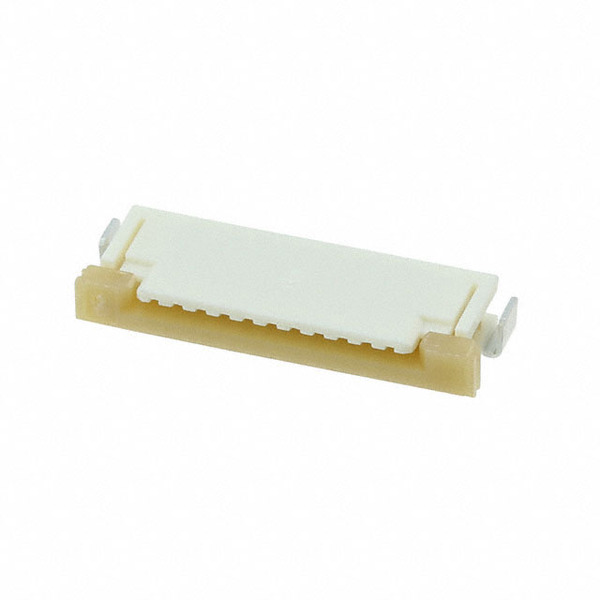

Images are for reference only.
See Product Specifications for product details.
Buy 0522071133 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0522071133 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0522071133 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC FPC TOP 11POS 1MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.65 | $0.609 | $0.589 | $0.569 | $0.54 | |
Specifications
Data sheet
| Voltage Rating: | 125V |
|---|---|
| Termination: | Solder |
| Series: | Easy-On 52207 |
| Pitch: | 0.039" (1.00mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 0052207-1133 052207-1133 0522071133-ND 52207-1133 522071133 WM10943TR |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Positions: | 11 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 30 |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Locking Feature: | Slide Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA), Nylon, Glass Filled |
| Housing Color: | White |
| Height Above Board: | 0.106" (2.70mm) |
| Flat Flex Type: | FFC, FPC |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 11 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating: | 1A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | 39.4µin (1.00µm) |
| Contact Finish: | Tin Bismuth |
| Connector/Contact Type: | Contacts, Top |
| Cable End Type: | Tapered |
| Actuator Material: | Polyphenylene Sulfide (PPS) |
| Actuator Color: | Brown |
| Email: | info@cjjhk.com |
Introduce
We can supply 0522071133, use the request quote form to request 0522071133 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0522071133.The price and lead time for 0522071133 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0522071133.We look forward to working with you to establish long-term relations of cooperation
