0520440745
Affinity Medical Technologies - a Molex company

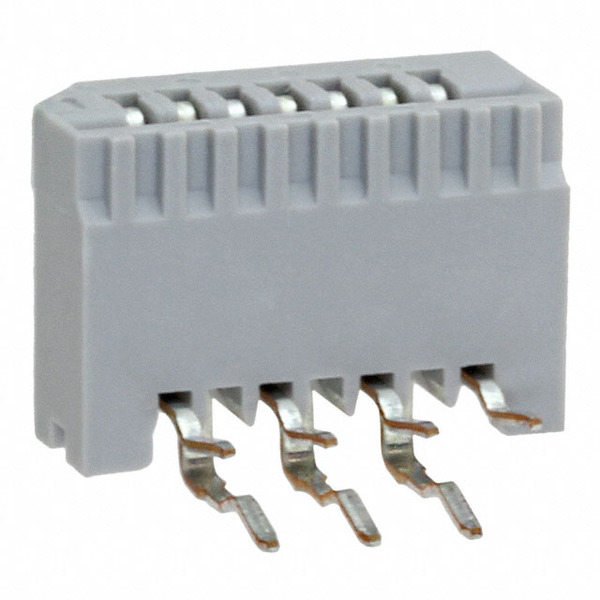

Images are for reference only.
See Product Specifications for product details.
Buy 0520440745 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0520440745 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0520440745 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC FPC TOP 7POS 1.25MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.43 | $0.411 | $0.352 | $0.30 | $0.288 | |
| 250 pcs | 500 pcs | 1300 pcs | 2600 pcs | ||
| $0.259 | $0.247 | $0.206 | $0.188 | ||
Specifications
Data sheet
| Voltage Rating: | 200V |
|---|---|
| Termination: | Kinked Pin |
| Series: | 52044 |
| Pitch: | 0.049" (1.25mm) |
| Packaging: | Tray |
| Other Names: | 052044-0745 0520440745-ND 52044-0745 520440745 WM14627 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Positions: | 7 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | - |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Locking Feature: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polybutylene Terephthalate (PBT), Polyester |
| Housing Color: | Gray |
| Height Above Board: | 0.197" (5.00mm) |
| Flat Flex Type: | FFC, FPC |
| Features: | - |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 7 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle |
| Current Rating: | 1A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | 35.4µin (0.90µm) |
| Contact Finish: | Tin |
| Connector/Contact Type: | Contacts, Top |
| Cable End Type: | Straight |
| Actuator Material: | - |
| Actuator Color: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 0520440745, use the request quote form to request 0520440745 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0520440745.The price and lead time for 0520440745 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0520440745.We look forward to working with you to establish long-term relations of cooperation
