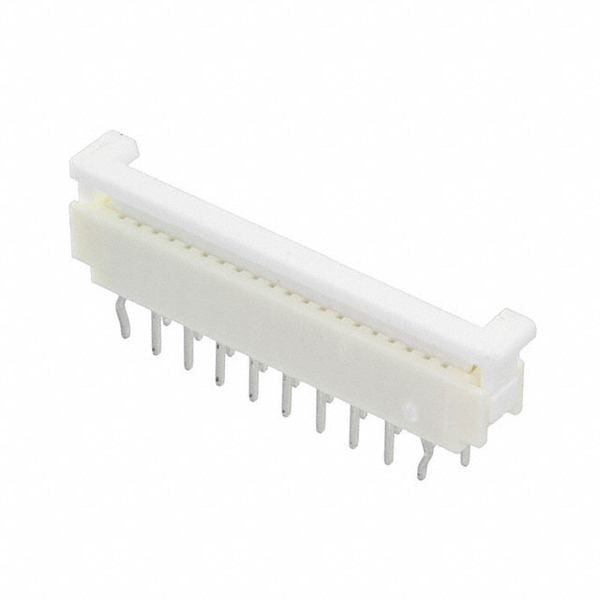

0520302029
Affinity Medical Technologies - a Molex company
Images are for reference only.
See Product Specifications for product details.
Buy 0520302029 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0520302029 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0520302029 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 20POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.95 | $1.767 | $1.658 | $1.586 | $1.514 | |
| 250 pcs | 500 pcs | 1000 pcs | 3000 pcs | ||
| $1.37 | $1.262 | $1.082 | $1.01 | ||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Kinked Pin |
| Series: | 52030 |
| Pitch: | 0.039" (1.00mm) |
| Packaging: | Tray |
| Other Names: | 052030-2029 052030-2029-C 0520302029-C 52030-2029 52030-2029-C 520302029 520302029-C WM1178 |
| Operating Temperature: | -20°C ~ 80°C |
| Number of Positions: | 20 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | - |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Locking Feature: | Slide Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA66), Nylon 6/6 |
| Housing Color: | - |
| Height Above Board: | 0.205" (5.20mm) |
| Flat Flex Type: | FPC |
| Features: | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 20 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole |
| Current Rating: | 1A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin Bismuth |
| Connector/Contact Type: | Contacts, Vertical, 1 Sided |
| Cable End Type: | Tapered |
| Actuator Material: | Polyester |
| Actuator Color: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 0520302029, use the request quote form to request 0520302029 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0520302029.The price and lead time for 0520302029 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0520302029.We look forward to working with you to establish long-term relations of cooperation
