0448120023
Affinity Medical Technologies - a Molex company

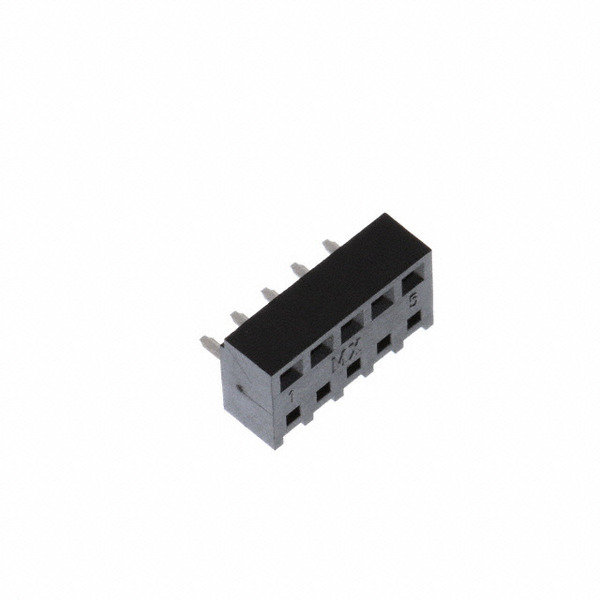

Images are for reference only.
See Product Specifications for product details.
Buy 0448120023 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0448120023 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0448120023 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECPT 5POS .100" 15GOLD PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.81 | $2.701 | $2.251 | |||
| 500 pcs | 1840 pcs | 5520 pcs | |||
| $1.913 | $1.576 | $1.463 | |||
Specifications
Data sheet
| Voltage Rating: | 250VAC, 176VDC |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | KK 44812 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tray |
| Other Names: | 044812-0023 044812-0023-E 0448120023-E 44812-0023 44812-0023-E 44812-0023-TR230 448120023 448120023-E WM18604 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 5 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height: | 0.177" (4.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 5 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating: | - |
| Contact Type: | Female Socket |
| Contact Shape: | Square |
| Contact Material: | Brass Alloy |
| Contact Length - Post: | 0.136" (3.46mm) |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle, Bottom or Top Entry |
| Applications: | Automotive, General Purpose, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0448120023, use the request quote form to request 0448120023 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0448120023.The price and lead time for 0448120023 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0448120023.We look forward to working with you to establish long-term relations of cooperation
