0430452425
Affinity Medical Technologies - a Molex company

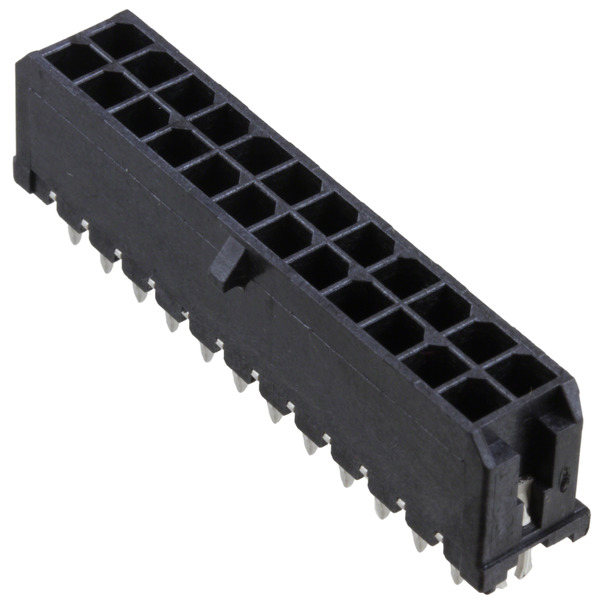

Images are for reference only.
See Product Specifications for product details.
Buy 0430452425 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0430452425 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0430452425 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MICROFIT 3.0 VERT PTH/CLIP DR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $5.72 | $5.492 | $5.034 | $4.805 | $4.576 | |
| 250 pcs | 576 pcs | 1152 pcs | 2880 pcs | ||
| $4.004 | $3.89 | $3.318 | $3.089 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Kinked Pin, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Micro-Fit 3.0 43045 |
| Row Spacing - Mating: | 0.118" (3.00mm) |
| Pitch - Mating: | 0.118" (3.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0430-45-2425 043045-2425 0430452425-ND 43045-2425 430452425 WM10747 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 24 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height: | 0.390" (9.91mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Guide, Board Lock |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole 24 position 0.118" (3.00mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.125" (3.18mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | General Purpose, Medical, Military, Telecommunications |
