0430451824
Affinity Medical Technologies - a Molex company

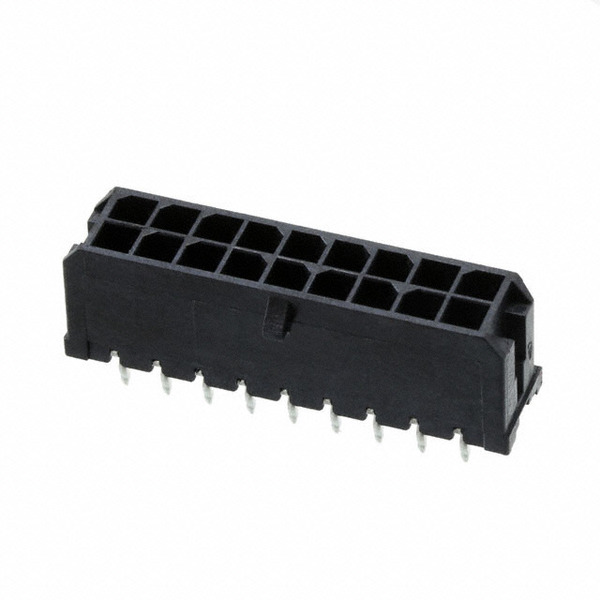

Images are for reference only.
See Product Specifications for product details.
Buy 0430451824 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0430451824 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0430451824 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MICROFIT 3.0 VERT PTH /CLIP DR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $3.50 | $3.358 | $3.078 | $2.938 | $2.798 | |
| 250 pcs | 720 pcs | 1440 pcs | 2880 pcs | ||
| $2.449 | $2.379 | $2.029 | $1.889 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Kinked Pin, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Micro-Fit 3.0 43045 |
| Row Spacing - Mating: | 0.118" (3.00mm) |
| Pitch - Mating: | 0.118" (3.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0430-45-1824 043045-1824 0430451824-ND 43045-1824 430451824 WM10715 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 18 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height: | 0.390" (9.91mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Guide, Board Lock |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole 18 position 0.118" (3.00mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.125" (3.18mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 60.0µin (1.52µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Medical, Military, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0430451824, use the request quote form to request 0430451824 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0430451824.The price and lead time for 0430451824 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0430451824.We look forward to working with you to establish long-term relations of cooperation
