0428196233
Affinity Medical Technologies - a Molex company

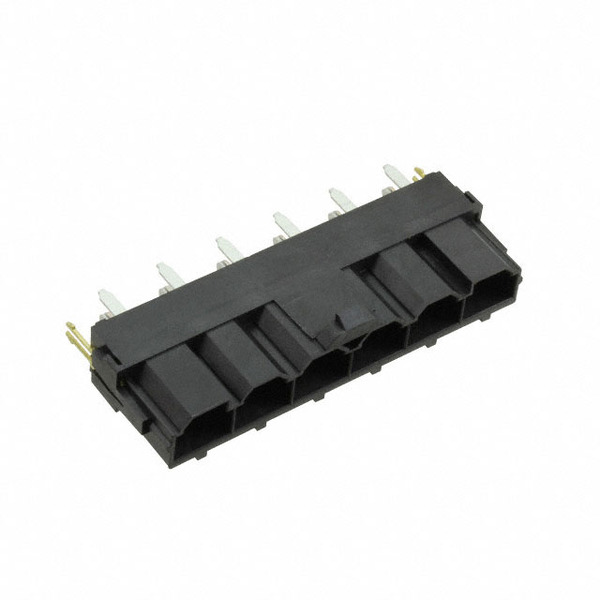

Images are for reference only.
See Product Specifications for product details.
Buy 0428196233 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0428196233 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0428196233 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINIFIT SR HDR VERT 125 CLIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 180 pcs | 540 pcs | 1080 pcs |
|---|---|---|---|---|---|
| $11.52 | $10.477 | $8.906 | $7.596 | $6.967 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Mini-Fit Sr 42819 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.394" (10.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0428-19-6233 042819-6233 0428196233-ND 42819-6233 428196233 WM14566 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 6 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height: | 0.827" (21.00mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Lock |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole 6 position 0.394" (10.00mm) |
| Current Rating: | - |
| Contact Type: | Male Blade |
| Contact Shape: | Rectangular |
| Contact Material: | Copper Zirconium Alloy |
| Contact Length - Post: | 0.201" (5.11mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0428196233, use the request quote form to request 0428196233 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0428196233.The price and lead time for 0428196233 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0428196233.We look forward to working with you to establish long-term relations of cooperation
