0428195212
Affinity Medical Technologies - a Molex company

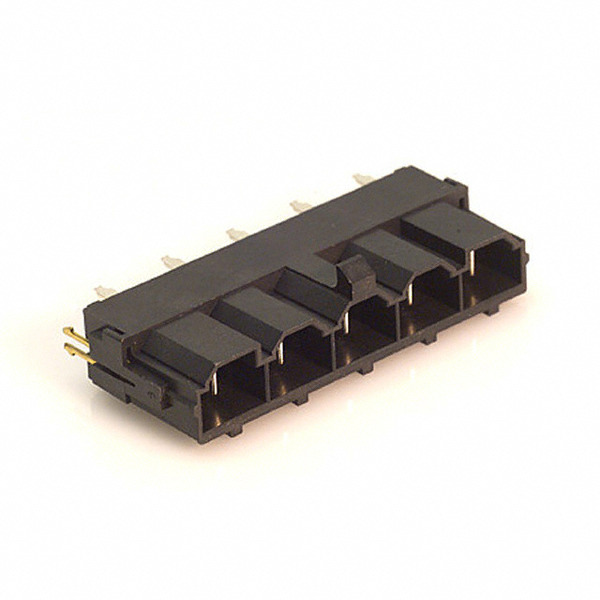

Images are for reference only.
See Product Specifications for product details.
Buy 0428195212 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0428195212 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0428195212 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 5POS 10MM VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 216 pcs | 648 pcs | |
|---|---|---|---|---|---|
| $11.16 | $10.674 | $8.976 | $7.521 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Mini-Fit Sr 42819 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.394" (10.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 042819-5212 042819-5212-P 0428195212-P 428-19-5212-P 42819-5212 42819-5212-P 428195212 428195212-P WM1940 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 5 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height: | 0.827" (21.00mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Lock |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole 5 position 0.394" (10.00mm) |
| Current Rating: | - |
| Contact Type: | Male Blade |
| Contact Shape: | Rectangular |
| Contact Material: | Copper Zirconium Alloy |
| Contact Length - Post: | 0.138" (3.50mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0428195212, use the request quote form to request 0428195212 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0428195212.The price and lead time for 0428195212 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0428195212.We look forward to working with you to establish long-term relations of cooperation
