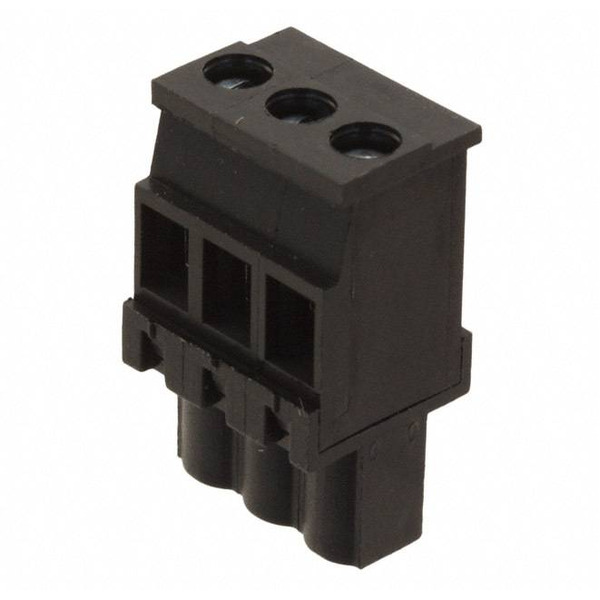

0395332003
Affinity Medical Technologies - a Molex company
Images are for reference only.
See Product Specifications for product details.
Buy 0395332003 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0395332003 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0395332003 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK PLUG 3POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.28 | $1.722 | $1.596 | $1.435 | $1.40 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.225 | $1.12 | $1.015 | $0.893 | ||
Specifications
Data sheet
| Wire Strip Length: | 5mm |
|---|---|
| Wire Gauge or Range - mm²: | - |
| Wire Gauge or Range - AWG: | 12-26 AWG |
| Voltage - UL: | 300V |
| Type: | Plug, Female Sockets |
| Torque - Screw: | 0.56 Nm (5.0 Lb-In) |
| Termination Style: | Screw - Rising Cage Clamp |
| Series: | Eurostyle ESE 39533 |
| Screw Size: | - |
| Positions Per Level: | 3 |
| Plug Wire Entry: | 270° |
| Pitch: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Other Names: | 039533-2003 039533-2003-E 0395332003-E 39533-2003 39533-2003-E 395332003 395332003-E WM7827 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Positions: | 3 |
| Number of Levels: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 1.020" (25.91mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA66), Nylon 6/6 |
| Header Orientation: | - |
| Features: | Retention Latches (Non-Wire Side) |
| Detailed Description: | 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 270° Free Hanging (In-Line) |
| Current - UL: | 15A |
| Current - IEC: | - |
| Contact Tail Length: | - |
| Contact Mating Finish: | Tin |
| Contact Material: | Phosphor Bronze |
| Color: | Black |
| Email: | info@cjjhk.com |
