0190990013
Affinity Medical Technologies - a Molex company

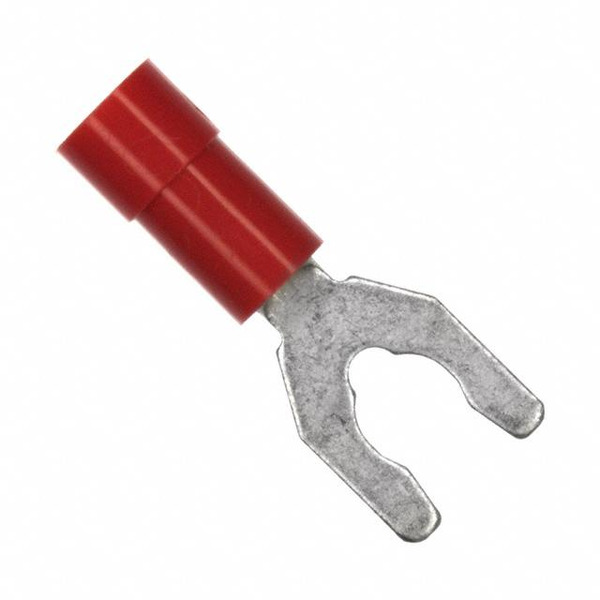

Images are for reference only.
See Product Specifications for product details.
Buy 0190990013 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0190990013 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0190990013 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 18-22AWG #8 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.30 | $0.287 | $0.246 | $0.209 | $0.201 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.18 | $0.172 | $0.143 | $0.131 | ||
Specifications
Data sheet
| Wire Gauge: | 18-22 AWG |
|---|---|
| Width - Outer Edges: | 0.310" (7.87mm) |
| Tongue Inside Opening: | 0.139" (3.53mm) |
| Termination: | Crimp |
| Terminal Type: | Spring, Snap |
| Stud/Tab Size: | 8 Stud |
| Series: | InsulKrimp |
| Packaging: | Bulk |
| Other Names: | 019099-0013 019099-0013-C 0190990013-C 19099-0013 19099-0013-C 190990013 190990013-C AA-2714-08X WM18996 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Poly-Vinyl Chloride (PVC) |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Length - Termination: | 0.405" (10.29mm) |
| Length - Ring Center to Termination: | 0.261" (6.63mm) |
| Length - Overall: | 0.871" (22.12mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.145" (3.68mm) |
| Insulation: | Insulated |
| Features: | - |
| Detailed Description: | Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material: | Copper |
| Contact Finish: | Electro-Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply 0190990013, use the request quote form to request 0190990013 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0190990013.The price and lead time for 0190990013 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0190990013.We look forward to working with you to establish long-term relations of cooperation
