0190360009
Affinity Medical Technologies - a Molex company

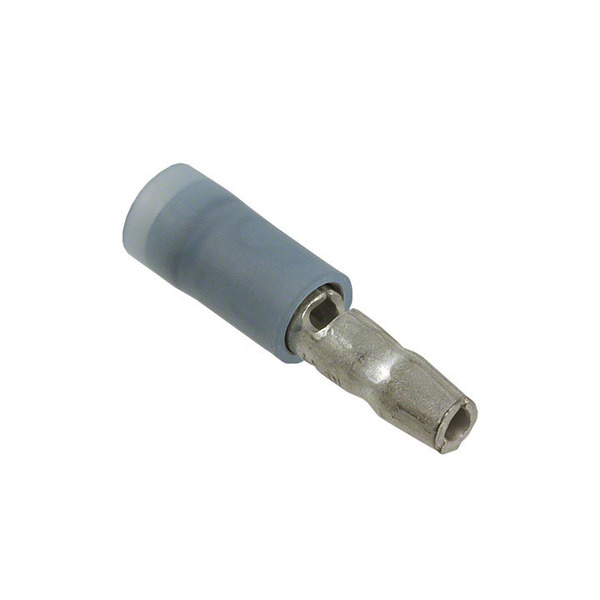

Images are for reference only.
See Product Specifications for product details.
Buy 0190360009 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0190360009 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0190360009 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN TERM PIN 14-16AWG CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.29 | $0.281 | $0.264 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.255 | $0.237 | $0.228 | |||
Specifications
Data sheet
| Wire Gauge: | 14-16 AWG |
|---|---|
| Termination: | Crimp |
| Terminal Type: | Male, Pin (Plug) |
| Series: | Avikrimp |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 019036-0009 19036-0009 190360009 B-889T WM6933TR |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length - Overall: | 0.901" (22.89mm) |
| Length - Barrel: | 0.426" (10.82mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.170" (4.32mm) |
| Insulation: | Non-Mating End Insulated |
| Features: | - |
| Diameter - Barrel: | 0.156" (3.96mm) |
| Detailed Description: | Terminal Connector Male, Pin (Plug) 14-16 AWG Crimp Tin |
| Contact Material: | Copper |
| Contact Finish: | Tin |
| Color: | Blue |
| Email: | info@cjjhk.com |
Introduce
We can supply 0190360009, use the request quote form to request 0190360009 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0190360009.The price and lead time for 0190360009 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0190360009.We look forward to working with you to establish long-term relations of cooperation
