0026602150
Affinity Medical Technologies - a Molex company

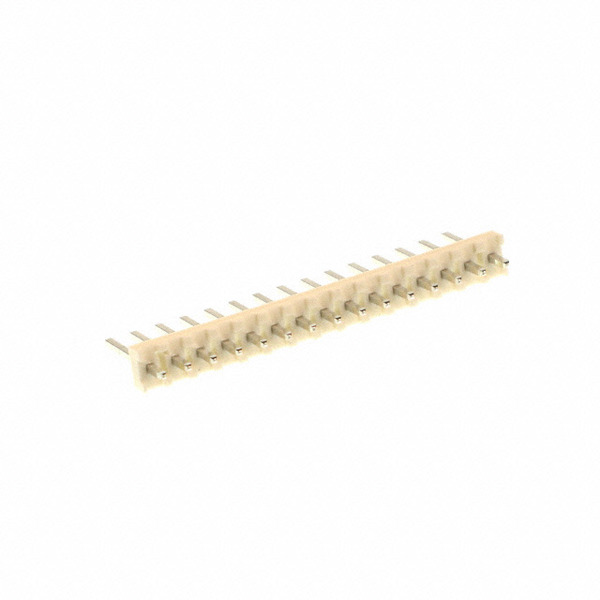

Images are for reference only.
See Product Specifications for product details.
Buy 0026602150 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 0026602150 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 0026602150 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 156 HDR ASSY TIN 15POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.17 | $1.973 | $1.691 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $1.409 | $1.208 | $1.071 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | KK 41771 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.156" (3.96mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.720" (18.29mm) |
| Other Names: | 0026-60-2150 002660-2150 0026602150-ND 26-60-2150 26602150 41771-0015 WM19517 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 15 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyester, Glass Filled |
| Insulation Height: | 0.130" (3.30mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 15 position 0.156" (3.96mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | - |
| Contact Length - Post: | 0.140" (3.56mm) |
| Contact Length - Mating: | 0.450" (11.43mm) |
| Contact Finish Thickness - Post: | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating: | 60.0µin (1.52µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 0026602150, use the request quote form to request 0026602150 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 0026602150.The price and lead time for 0026602150 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 0026602150.We look forward to working with you to establish long-term relations of cooperation
